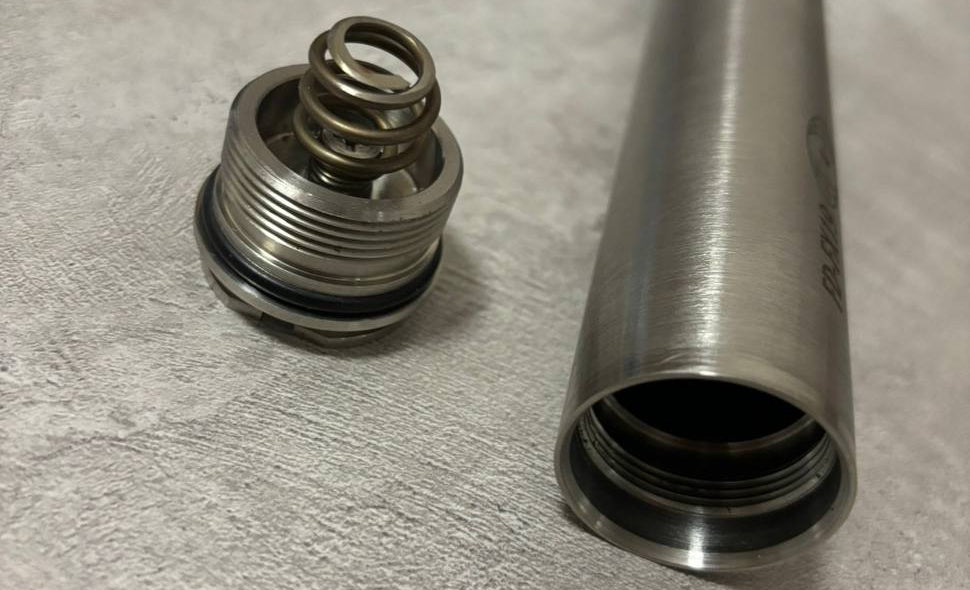

How to Keep Your Sonde Transmitter Battery Compartment in Good Shape

Battery compartment problems are among the most common - and most preventable - causes of sonde failure in the field. What looks like a minor issue at first can quickly turn into a full disassembly job. Three habits cover most of it: inspect regularly, clean after every bore, and lubricate the sealing parts.

Drilling Fluid Gets Everywhere

Drilling mud under pressure finds its way into any gap it can. If the cap does not seat tightly against the sonde body, fluid works its way inside and attacks the spring contacts through electrochemical corrosion. Once that happens, the electrical resistance at the contact point rises - and the sonde starts burning through batteries faster than it should.

A rough illustration of why this matters: if the contact resistance adds even a few ohms of loss, a noticeable share of your battery voltage never reaches the electronics. The onboard circuitry compensates by drawing more current, which increases the voltage drop further. In practice this can cut effective battery life by around 30% - which is where the complaint "the sonde eats batteries" usually comes from.

The goal after every bore is simple: the inside of the battery compartment should be clean and shiny. If fluid has already entered, clean it out immediately. Use a dry cloth or one dampened with isopropyl alcohol. A narrow rod - screwdriver, flat file - wrapped in cloth works well for reaching the inside of the tube. Rotational strokes work better than straight ones for clearing the threads and spring area.

Check the O-ring Every Time

The cap's O-ring is the first line of defense against fluid ingress. With regular use and thermal cycling it wears down, flattens, or can fall out entirely - often without anyone noticing until the next bore.

To extend O-ring life, apply a thin coat of O-ring or silicone grease before reassembly. In the field, petroleum jelly (Vaseline) works fine as a substitute.

If the O-ring is missing or damaged and you have nothing on hand, PVC electrical tape wound in three to four tight layers around the seating groove can serve as a temporary fix - close the cap firmly and trim the excess tape flush. This is not a permanent solution, but it restores enough sealing to finish the day.

The standard O-ring dimensions for most common sondes: 24 mm inner diameter, 2.5 mm cross-section. These are inexpensive and sold at any hardware or plumbing supply store. Keep a couple of spares in the locator case - they take up almost no space.

Keep the Threads Clean

Dirty threads on either the cap or the body create two problems at once: the cap may not fully close, leaving a gap for fluid to enter; and the contact resistance increases from oxidation on the thread surfaces themselves.

Clean the threads carefully with a fine-pointed tool - a thin screwdriver works well - then wipe down with an alcohol-dampened cloth. A light coat of conductive grease or petroleum jelly after cleaning helps prevent future oxidation and makes the cap easier to open next time.

Compression Damage: A Different Problem Entirely

If the cap is jammed after a bore and the batteries will not come out, the sonde body may have been compressed - for example, if it was caught between the drill head and the borehole wall.

Compression damage is rarely limited to the battery compartment. It can damage internal electronics, including the ferrite antenna, which is fragile. If there is any sign that the sonde was squeezed during the bore, have it fully inspected before putting it back into service. Field cleaning will not fix bent metal or cracked components.

Summary: Three Rules

Inspect - after every bore, check the O-ring condition and look for signs of fluid entry.

Clean - wipe the threads, the tube, and the spring contact until the inside is clean and bright.

Lubricate - a thin layer of grease on the O-ring and threads goes a long way toward keeping both the seal and the contact resistance where they belong.

Most sonde failures that end in a workshop repair started as a neglected battery compartment. Fifteen seconds of care after each bore is a far better outcome than a week without a working sonde on site.
