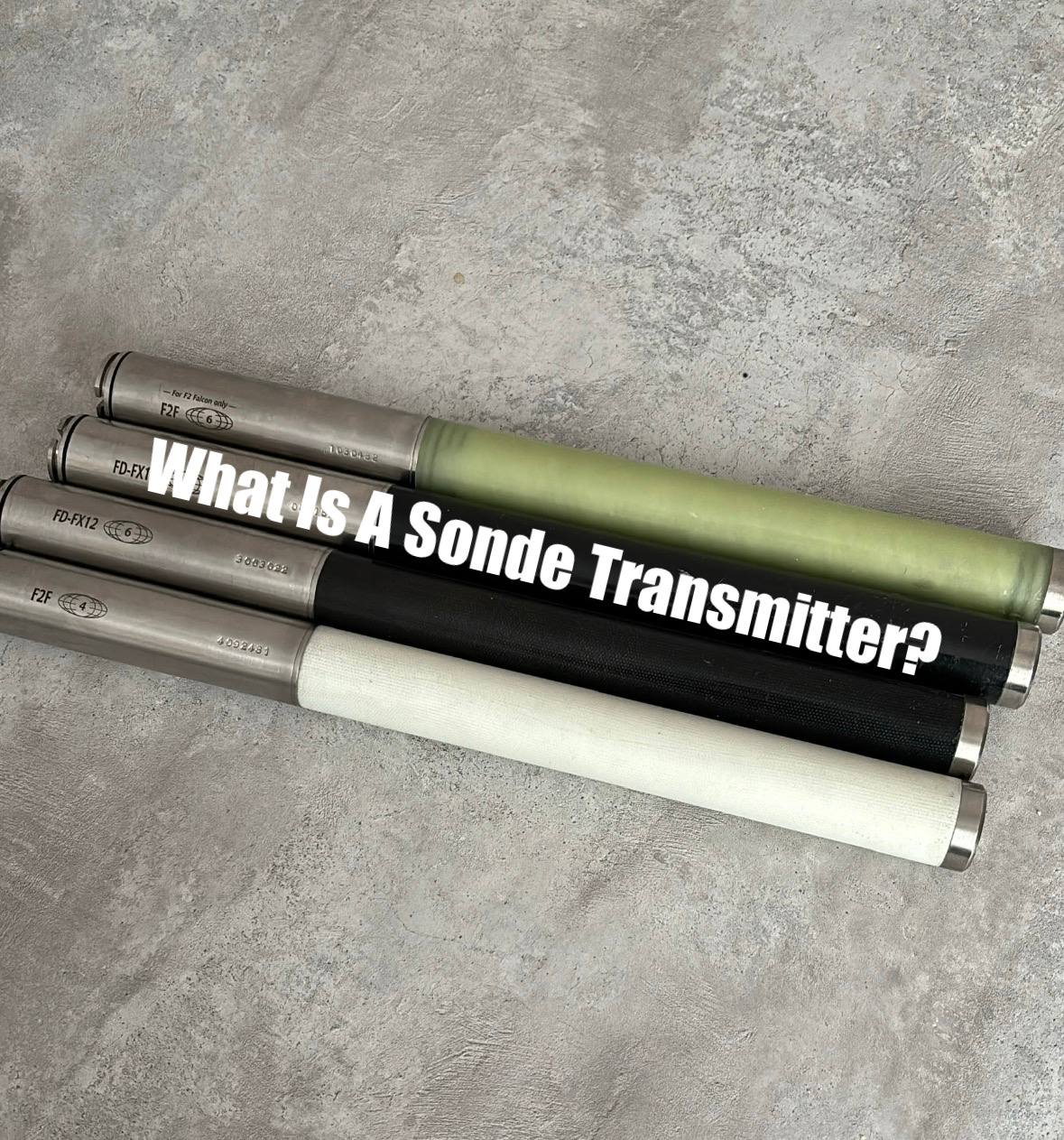

A sonde transmitter is a compact electronic device used in horizontal directional drilling (HDD) to track the position of a drill head underground. Installed inside the drilling tool, the sonde emits signals that allow operators to monitor depth, direction, and orientation in real time.
Leading manufacturers such as DigiTrak, Ditch Witch Subsite, and Radiodetection produce advanced sonde transmitters widely used in the HDD industry for their accuracy and reliability.
How a Sonde Transmitter Works
A sonde transmitter operates by generating an electromagnetic signal that travels through the ground and is detected by a surface receiver (locator).
Step-by-step process:
- The sonde is installed inside the drill head.
- It transmits a signal at a specific frequency.
- A locator on the surface (such as systems from DigiTrak, Ditch Witch Subsite, or Radiodetection) detects the signal.
- The system displays real-time data to the operator.
This process allows continuous tracking of the drill head during the entire HDD operation.
Key Functions of a Sonde Transmitter
Modern HDD sonde transmitters provide critical drilling data, including:
- Depth measurement
- Drill head location tracking
- Pitch (angle of inclination)
- Roll (rotation/orientation)
- Temperature monitoring
- Battery status
These features are standard in professional equipment from brands like DigiTrak, Ditch Witch Subsite, and Radiodetection.
Operating Temperature of Sonde Transmitters
All sonde transmitters are fitted with a built-in digital temperature sensor as well as a physical temperature indicator (temp dot) to help prevent overheating during operation. It is advisable to avoid operating the sonde at temperatures exceeding 95°F, as prolonged exposure to heat can negatively impact performance and reliability.
What Is a Sonde Transmitter Temperature Dot?
If the sonde becomes too hot, drilling should be paused to allow the equipment to cool down. A common recommendation is to stop drilling and pull the sonde housing back a few feet to reduce heat buildup.
When the temperature rises above 104°F, the temperature indicator will change color from white to grey or black. A black dot signals that the transmitter has been exposed to excessive heat, which may result in damage to internal components.
It’s important to note that if the temperature dot turns black or is removed, the transmitter warranty may be voided.
Overheating is typically caused by factors such as poor drilling fluid circulation, difficult ground conditions, or clogged jets. To minimize the risk, operators should follow proper drilling procedures and maintain optimal working conditions.
Why Sonde Transmitters Are Important in HDD
Using a sonde transmitter in horizontal directional drilling significantly improves performance and reduces risks.
Main benefits:
- Accurate underground navigation
- Avoidance of existing utilities (pipes, cables)
- Reduced risk of damage and costly repairs
- Increased drilling efficiency
- Better project outcomes
Without a sonde, HDD drilling becomes far less controlled and much more risky, even when using advanced locating systems.
Types of Sonde Transmitters
Different sonde transmitters for HDD are designed for specific environments and project requirements.
1. Single-Frequency Sonde
Operates on a fixed frequency. Best suited for low-interference environments.
2. Multi-Frequency Sonde
Allows switching between frequencies for improved performance in areas with signal interference, such as urban locations. Many models from DigiTrak, Ditch Witch Subsite, and Radiodetection fall into this category.
3. High-Power Sonde
Designed for deep drilling applications where stronger signal transmission is required.
How to Choose the Right Sonde Transmitter
When selecting a sonde transmitter for HDD drilling, consider the following factors:
- Required drilling depth
- Ground conditions and soil type
- Level of signal interference
- Operating temperature range
- Compatibility with your locator system (e.g., DigiTrak, Ditch Witch Subsite, or Radiodetection)
- Battery life and durability
Choosing the right equipment ensures better accuracy and long-term reliability.
Where to Buy Sonde Transmitters
If you are looking for reliable equipment, sondex.shop offers a wide range of sonde transmitters compatible with DigiTrak, Ditch Witch Subsite, and Radiodetection systems.
We provide solutions suitable for various HDD applications, including standard, multi-frequency, and high-power sondes designed for professional use.
Conclusion
A sonde transmitter is a vital tool in modern horizontal directional drilling (HDD). By providing real-time underground data, it enables precise navigation, improves safety, and increases overall drilling efficiency.
Choosing high-quality sondes — and a trusted supplier like sondex.shop — ensures reliable performance and successful project outcomes.
