What Is an HDD Locator - and Why Does It Matter?
Underground infrastructure is dense almost everywhere utilities are built: water and sewer lines, gas and electricity, fiber and telecom ducts often share the same corridors. Horizontal directional drilling (HDD) is used worldwide - from North America and Europe to the Middle East, Asia-Pacific, Latin America, and Africa - to install or replace lines without digging long open trenches. That makes accurate steering essential: the drill head must follow a planned path and avoid striking existing services.
An HDD locator is the surface-based tracking system that follows the bore. It works like a highly specialized locating tool: it reads the signal from a downhole transmitter and turns it into depth, orientation, and steering guidance so the crew can keep the bore on plan.
Below is how the system works, what it is made of, and the main locator types crews choose from.
How an HDD Locator Fits Into the Job
Horizontal directional drilling creates an underground path for pipes, ducts, or cables while limiting disturbance at grade to a few entry and exit points. It is a trenchless method: most of the work happens below the surface along a designed alignment.
During the pilot phase, a small-diameter hole is drilled from one surface location to another. That hole is reamed to size and the product is pulled in. A locating system is used from the first pass so the pilot stays on line and misses other utilities.
Good planning still takes time, but a reliable locator reduces guesswork during drilling and helps avoid costly strikes or abandoned bores.
Core Parts of an HDD Locating System
Most systems share three functional elements: a transmitter, a receiver, and a display. The difference between brands and models is in range, frequencies, interference handling, and software features.
The sonde sits just behind the drill head. It is usually a slim housing that transmits electromagnetic data the receiver can decode. From signal strength and quality, the operator can infer depth, clock (roll) position, and other parameters that define where the bit is pointing and how it is moving.
Transmitters are built for different soil and interference conditions. Many models offer multiple frequencies and power levels to improve depth performance or noise rejection. Because the sonde lives in a harsh environment, it is a high-wear component—check the housing, seals, and battery compartment regularly. Symptoms such as weak or missing data, overheating, or physical damage mean service or replacement may be needed. Downtime for repair can be long; many contractors keep a spare or consider refurbished units to limit idle time.

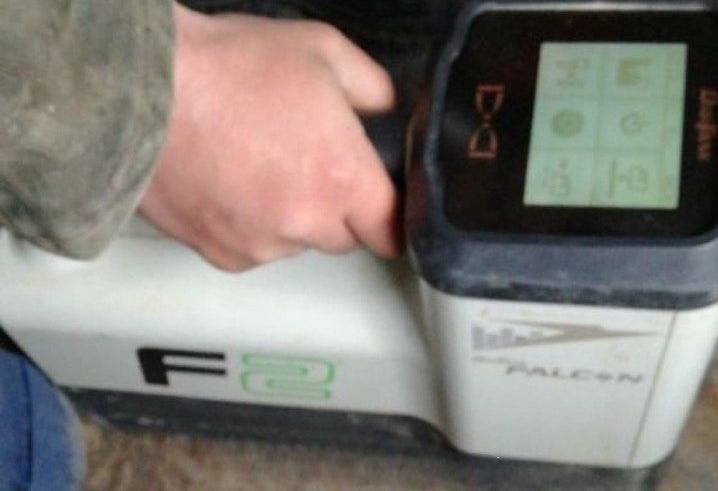

The receiver is the handheld unit that picks up the transmitter’s signal. The operator walks the expected bore line and moves the receiver to track the head in real time as the drill advances.
The display is the interface - where depth, pitch, roll, battery status, and alarms appear. The operator uses it to compare actual position to the bore plan and to adjust steering (pitch, direction, and depth) when the path drifts.
Main Types of HDD Locating Systems
With the head far below ground, you need a locating approach that matches depth, interference, and budget. Three broad categories cover most of the market.
The sonde behind the head sends EM data to the surface. The operator walks over the bore with the receiver, locks onto the signal, and relays steering feedback to the drill rig. This setup is common on smaller and mid-sized rigs and for many shallow to moderate-depth jobs.
Because the link is electromagnetic, performance is best where interference is manageable. Modern walk-over systems often support multiple frequencies and stronger feature sets, but depth and noise still set practical limits.
Wire-line (wire grid) systems
These systems use surface wire guidance (often grids or loops) and downhole sensors communicated through the drill string to position the head with high confidence. They are used when EM interference is severe (dense utilities, conductive soil, or heavy electrical noise).
Setup cost and time are higher than walk-over, but for some projects the accuracy and reliability justify the investment—especially when precise path control is non-negotiable.
Gyro guidance does not rely on the magnetic field in the same way as typical EM locating, so it can perform where magnetic interference dominates. It can cover long distances with strong positioning performance, but it has its own constraints (cost, complexity, and drift considerations).
It is suited to specific long-range or high-precision applications rather than everyday short urban bores.
Why an HDD Locator Is Worth the Investment
A locating system is a major purchase, but it pays back through fewer surprises, faster on-bore steering, and lower risk of hitting existing infrastructure. Keeping the pilot on the planned alignment protects schedule, safety, and compliance—especially in congested utility corridors anywhere HDD is used globally.
