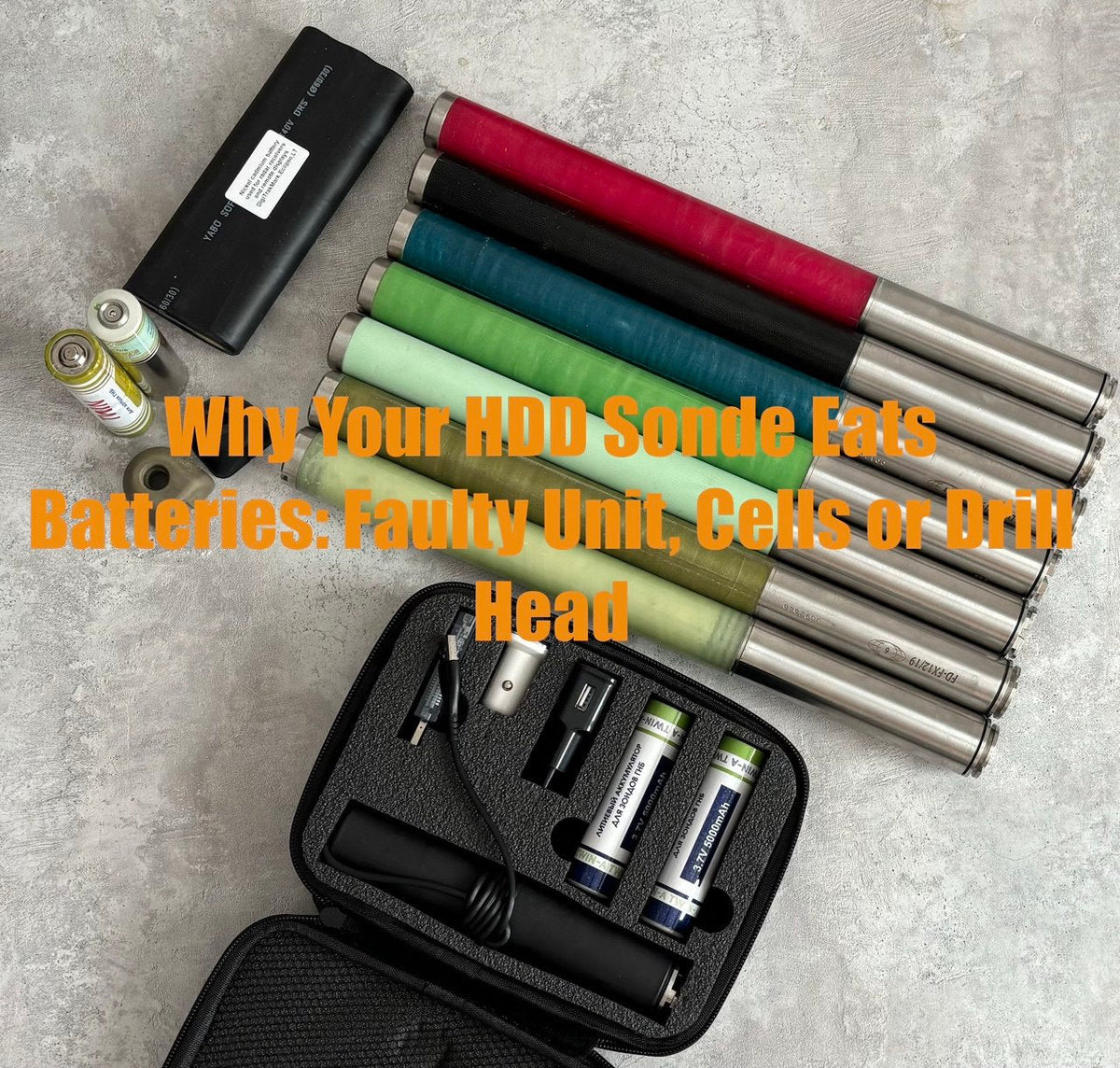

Why Your HDD Sonde Eats Batteries: Faulty Unit, Cells, or Drill Head
Why Your HDD Sonde Eats Batteries: Faulty Unit, Cells, or Drill Head
If you feel your sonde has started consuming batteries faster than before, this article is for you. There are three main reasons batteries run down quickly:
A faulty sonde — the most common cause when current draw suddenly increases.
“Bad” or depleted batteries — a very frequent second place.
A poor-quality drill head — less common, but it happens, especially with homemade heads.
Cause 1: A faulty sonde
A faulty sonde is the most frequent reason batteries are “eaten” quickly if everything used to be fine. The issue may be faulty electronics or poor contact in the battery compartment. Poor contact can be due to dirt in the compartment or weak spring pressure on the batteries, especially when drilling in difficult soils. Before replacing the sonde or sending it for repair, verify that it is really the problem: measure its power consumption — if it exceeds the normal value by more than 50%, the sonde is faulty.To measure sonde current draw you need a multimeter, the sonde itself, and fresh batteries you plan to use. Measurements are done outside the drill head.
How to check the sonde and measure current draw
Turn on the multimeter and set it to DC current mode, 10 A or 20 A (depending on the meter).
Insert fresh batteries.
Touch one multimeter probe to the battery compartment; with the other, press the batteries in place and gently shake the sonde.
After 5–7 seconds the sonde reaches operating mode. Note the average current reading.
For a step-by-step guide, see the video on the original page.
Different sondes have different power — and different current draw
Locator system
Sonde
OEM sonde current draw (mA)
Sondex new sonde current draw (mA)
DigiTrak Mark 3, 5
DT (yellow)
<70
<35
DX (red)
<90
<50
DigiTrak Eclipse
ET (black)
<100
<55
EDF dual-frequency lavender (1.5 kHz / 12 kHz)
<170 / <100
<90 / <75
EXL long (grey)
<140
<105
DigiTrak F2 / F5
FX12 (grey)
<100
<50
FX19 (black)
<100
<50
FX12/19 (black)
—
<50
FXL12 (deep)
<190
<105
FXL19 (deep)
<190
<105
FXL12/19 (deep, dual-frequency)
—
<105
DigiTrak F5
5XD 19/12
<140
<50
DigiTrak Falcon
F2F
—
<120
DigiTrak LT
LT (green)
<135
<50
DigiTrak SE
ST (light green)
<140
<50
Radiodetection RD-385L, DrillTrack, iTrack
RDDi
<90
<40
Ditch Witch: SubSite 750/752, 8500 TK and TKq
88BG
—
<50
88BGH
<95
<35
What if the readings differ by more than 50%?
You cannot fix this yourself. The sonde needs serious repair or replacement.
Cause 2: “Bad” batteries
In more than 20 years working with customers, we follow two rules for battery recommendations:
For shorter bores, use trusted brands: Energizer, GP, Navigator, ARO. Use only the freshest manufacturing date (for example, type marking “2031” on the cell for use in 2021 — i.e. match date codes to the year of use).
For long bores or powerful deep sondes, use lithium batteries. These are special sonde batteries such as TWIN or SuperCell (often called “100-hour” sonde batteries). With deep sondes, SuperCell can behave unpredictably due to higher current draw. For TWIN, the maximum recommended current is 500 mA, at which it can run about 20 hours continuously; with an F2/F5 sonde it can last over 100 hours.
Even these brands are not a guarantee — buy from trusted stores and large retailers to avoid old stock or counterfeits.
Cause 3: A poor-quality drill head
Current draw in a drill head is typically about 1.5–2× higher than in open air. Material and design strongly affect the final consumption.
First, the sonde pocket in the head must not be too tight. The sonde antenna (length 110–130 mm, starting 20–25 mm from the metal section boundary) should be symmetrical relative to the longitudinal slots. Slot length should exceed antenna length by at least 1.5×(continuously, without bridges).
Second, slots should ideally be filled with insulating material, usuallyglass-filled epoxy compound, to resist torsional twisting. If the head has open slots and is old, or work is in heavy soils, intermittent shorting across the slots due to torsion can occur, causing jerky depth readings and a sharp rise in current draw.
In short
If you suspect the sonde is “eating” batteries, first measure current draw with fresh batteries in open air. If that is normal, check the battery compartment (springs, contamination). If that is fine, switch to more reliable, freshest-date batteries from a trusted store. If it still fails, look for an external cause even if “it used to be fine.”
