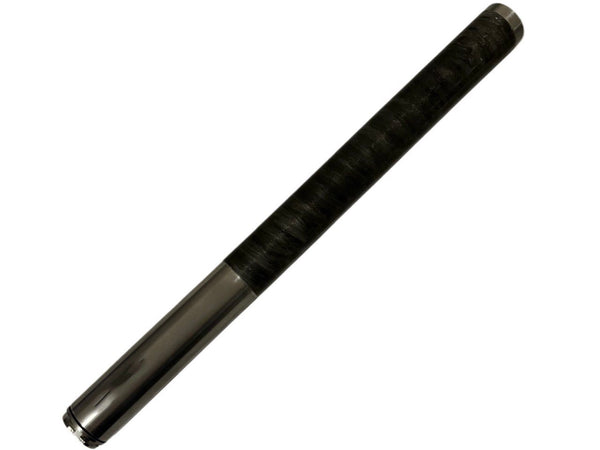

FX19 Black Sonde/Transmitter for DigiTrak F2 and F5
$1,200.00
Contact Us — Free Worldwide Shipping
- ✅ Compatible with DigiTrak F2 and F5 (⚠️ NOT compatible with Falcon series)
- ✅ 19.2 kHz, depth up to 19.8 m
- ✅ 2× longer battery life: 45–55 mA vs 100–110 mA OEM
- ✅ Reinforced for percussion drilling and heavy soils
- ✅ 1-year warranty. Free shipping worldwide
The FX19 black sonde is a replacement transmitter compatible with all standard DigiTrak F2 and DigiTrak F5 locating systems. Operating at 19.2 kHz, it provides a working depth of up to 19.8 meters. The sonde transmits 12 clock positions with an inclination accuracy of ±0.1%, and automatically switches to standby mode after 15 minutes of inactivity.
Our upgraded FX19 transmitter delivers 2× longer operating time through significantly reduced power consumption. The original DigiTrak sonde draws 100–110 mA in standalone operation; ours draws only 45–55 mA. Inside the drill head (where losses increase current draw by 70–100%), OEM sondes consume 180–220 mA, while our upgraded version consumes only 100–120 mA — extending run time and reducing heat buildup.
The structural elements responsible for reliable operation in harsh HDD conditions have been reinforced, making this sonde particularly well-suited for heavy or dense soils and percussion drilling rigs.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | DigiTrak F2, DigiTrak F5 (NOT Falcon) |
| Frequency | 19.2 kHz |
| Operating Depth | 65ft / 19.8 m |
| Dimensions | 15x1.25 inch / 38.1 × 3.175 cm |
| Weight | 635 g |
| Current Consumption (standalone) | 45–55 mA (vs 100–110 mA OEM) |
| Current Consumption (in drill head) | 100–120 mA (vs 180–220 mA OEM) |
| Standby Mode | After 15 minutes |
| Warranty | 1 year |
| Max Temperature | 104°C |
| Inclination Accuracy | ±0.1% |
| Clock Positions | 12 |
| Condition | New, improved |
