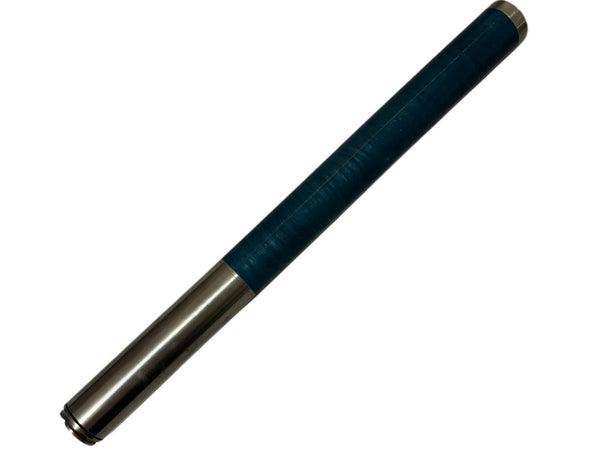

5XD 19/12 Blue Sonde/Transmitter for DigiTrak F5
$1,300.00
Contact Us — Free Worldwide Shipping
5XD Blue Sonde/Transmitter for DigiTrak F5 (12 kHz)
1 300,00 $ USD
- ✅ Compatible with DigiTrak F5 (dual frequency: 12 and 19.2 kHz)
- ✅ Lower power draw: 45–55 mA vs 100–110 mA OEM
- ✅ 1-year warranty with prompt replacement
- ✅ Free shipping worldwide
- ⚠️ Not compatible with Falcon F5 — DigiTrak F5 only
The 5XD 19/12 blue sonde is a replacement dual-frequency transmitter compatible with DigiTrak F5 locating systems. It operates at either 12 kHz or 19.2 kHz, providing a depth range of up to 19.8 meters. The sonde transmits 12 clock positions with an inclination accuracy of ±0.1%, and automatically switches to standby mode after 15 minutes of inactivity.
A key improvement over OEM is significantly reduced power consumption. The original DigiTrak transmitter draws 100–110 mA in standalone operation; our upgraded 5XD sonde draws only 45–55 mA. Inside the drill head (where losses increase current draw by 70–100%), branded transmitters consume 180–220 mA, while ours consume only 100–120 mA — extending battery life and reducing heat buildup.
The structural elements responsible for reliable operation in harsh HDD conditions have also been reinforced for improved durability.
Important: This sonde is compatible with DigiTrak F5 only. It does NOT work with the Falcon F5 system — these are different locating platforms.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | DigiTrak F5 (NOT Falcon F5) |
| Frequency | 12 / 19.2 kHz |
| Operating Depth | 65ft / 19.8 m |
| Length × Diameter | 15 x 1.25 inch /38.1 × 3.175 cm |
| Weight | 635 g |
| Current Consumption | 45–55 mA (standalone) / 100–120 mA (in drill head) |
| Standby Mode | After 15 minutes |
| Warranty | 1 year |
| Max Temperature | 104°C |
| Inclination Accuracy | ±0.1% |
| Clock Positions | 12 |
| Condition | New, improved |
