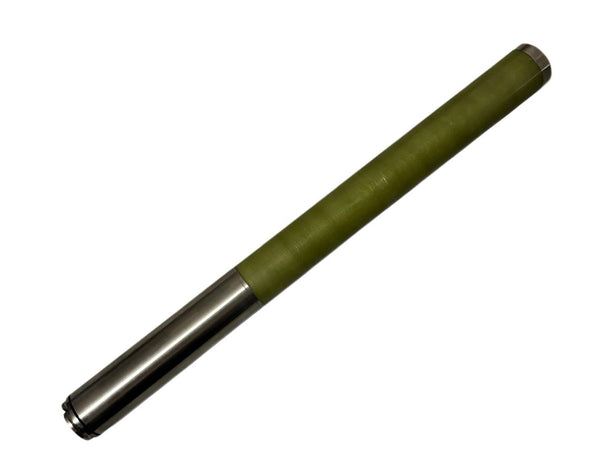

FX12/19 Dual-Frequency Sonde/Transmitter for DigiTrak F2 and F5
$1,300.00
Contact Us — Free Worldwide Shipping
- ✅ Compatible with DigiTrak F2 and F5 locating systems
- ✅ Dual frequency: 12 kHz or 19.2 kHz — selectable in the field
- ✅ Depth up to 19.8 m
- ✅ 3× longer battery life vs OEM
- ✅ 1-year warranty. Free shipping worldwide
The FX12/19 green sonde is a replacement dual-frequency transmitter compatible with all DigiTrak F2 and DigiTrak F5 locating systems. It operates at either 12 kHz or 19.2 kHz — selected directly in the field without any tools — with a working depth of up to 19.8 meters. The sonde transmits 12 clock positions with an inclination accuracy of ±0.1%, and switches to standby mode automatically after 15 minutes of inactivity.
This model delivers 3× longer battery life compared to the original DigiTrak sonde, achieved through significantly reduced power consumption while maintaining full signal strength and depth performance.
📋 How to Select Frequency in the Field
- 12 kHz: Insert batteries from the top, shake vigorously, wait 5 seconds.
- 19.2 kHz: Insert batteries from the bottom, shake vigorously, wait 5 seconds.
⚠️ The sonde continues operating for 40–50 seconds after battery removal. When switching frequency, wait at least 1 minute without batteries before reinserting.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | DigiTrak F2, DigiTrak F5 |
| Frequency | 12 kHz or 19.2 kHz (selectable) |
| Operating Depth | 65ft/19.8 m |
| Dimensions | 15x1.25 inch / 38.1 × 3.175 cm |
| Weight | 635 g |
| Battery Life | 3× longer than OEM |
| Standby Mode | After 15 minutes |
| Warranty | 1 year |
| Max Temperature | 104°C |
| Inclination Accuracy | ±0.1% |
| Clock Positions | 12 |
| Condition | New, improved |
