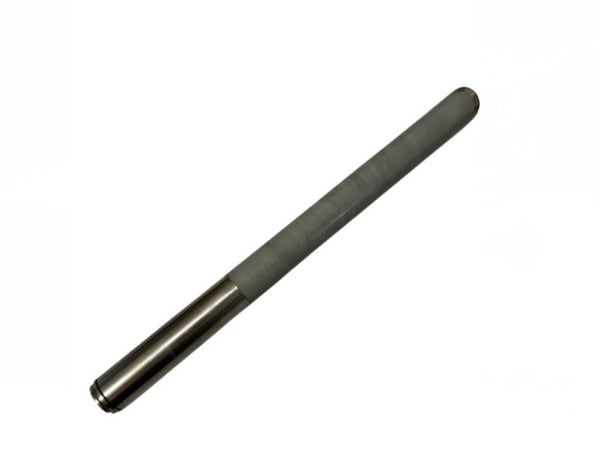

FXL12 Grey Deep Sonde/Transmitter for DigiTrak F2 and F5
$1,300.00
Contact Us — Free Worldwide Shipping
- ✅Compatible with DigiTrak F2 and F5 (⚠️ NOT compatible with Falcon series)
- ✅12 kHz, depth up to 25.9 m
- ✅2× longer battery life: 75–85 mA vs 150 mA OEM
- ✅Reinforced for percussion drilling and heavy soils
- ✅1-year warranty. Free shipping worldwide
⚠️ Compatibility note: The FXL12 sonde is compatible with DigiTrak F2 and F5 only. It is NOT compatible with the DigiTrak Falcon series.
The FXL12 grey deep sonde operates at depths of up to 25.9 meters. Long probe body for enlarged drill head. Suitable for all DigiTrak F2 and DigiTrak F5 locators. Frequency 12 kHz. The sonde transmits 12 clock positions and inclination with an accuracy of ±0.1%. Switches to standby mode after 15 minutes.
Operating time increased by 2× — power consumption reduced while maintaining signal strength. Power consumption of the "branded" sonde in operating mode is up to 150 mA, while our upgraded model consumes 75–85 mA. In the drill head, power consumption increases by 70–100% due to losses: the original transmitters consume up to 250 mA, while the upgraded ones consume 120–150 mA.
Increased reliability when working in heavy soils or in percussion drilling rigs — the probe's structural elements responsible for trouble-free operation in harsh conditions have been reinforced.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | DigiTrak F2, DigiTrak F5 (NOT Falcon) |
| Frequency | 12 kHz |
| Operating Depth | 85ft / 25.9 m |
| Dimensions | 19x1.25 inch / 48.26 × 3.175 cm |
| Weight | 839 g |
| Current Consumption (standalone) | 75–85 mA (vs 150 mA OEM) |
| Current Consumption (in drill head) | 120–150 mA (vs 250 mA OEM) |
| Standby Mode | After 15 minutes |
| Warranty | 1 year |
| Max Temperature | 104°C |
| Inclination Accuracy | ±0.1% |
| Clock Positions | 12 |
| Condition | New, improved |
