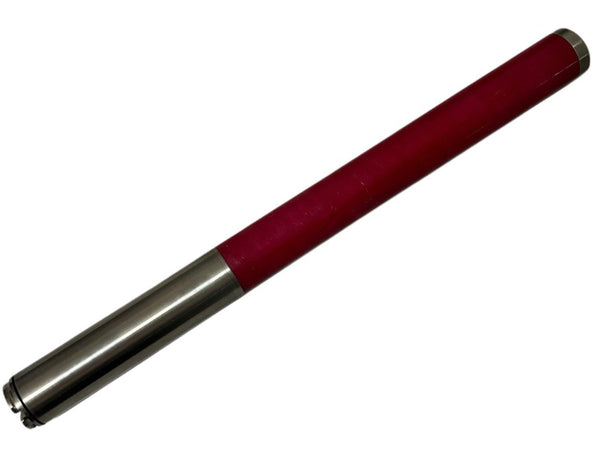

DX Red Sonde/Transmitter for DigiTrak Mark Series
$1,000.00
Contact Us — Free Worldwide Shipping
- ✅ Compatible with DigiTrak Mark 3, 4, and 5
- ✅ Extended depth: up to 21.3 m (vs 11 m DT Yellow)
- ✅ 2× longer battery life: 35 mA vs 70 mA OEM
- ✅ 1-year warranty with prompt replacement
- ✅ Free shipping worldwide
The DX red sonde is a replacement transmitter compatible with all DigiTrak Mark 3, Mark 4, and Mark 5 locating systems. Operating at 33 kHz, the DX offers an extended working depth of up to 21.3 meters — making it the deep-range option in the DigiTrak Mark sonde lineup, compared to the standard 11 m of the DT yellow sonde. It transmits 12 clock positions with an inclination accuracy of ±0.1%, and automatically switches to standby mode after 15 minutes of inactivity.
A key advantage over the OEM transmitter is significantly reduced power consumption. The original DigiTrak DX probe draws approximately 70 mA in operating mode; our upgraded sonde draws only 35 mA — delivering 2× longer operating time per charge while maintaining full signal strength and depth performance.
The structural components responsible for reliable performance in demanding HDD environments have been reinforced for improved durability and longevity in harsh field conditions.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | DigiTrak Mark 3, 4, 5 |
| Frequency | 33 kHz |
| Operating Depth | 55ft / 21.3 m |
| Dimensions | 15 x 1.25 inch / 38.1 × 3.175 cm |
| Weight | 635 g |
| Current Consumption | 35 mA (vs 70 mA OEM — 2× longer battery life) |
| Standby Mode | After 15 minutes |
| Warranty | 1 year |
| Max Temperature | 104°C |
| Inclination Accuracy | ±0.1% |
| Clock Positions | 12 |
| Condition | New, improved |
