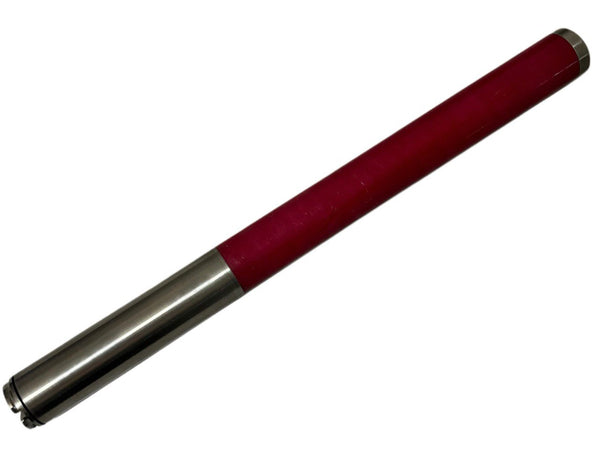

DX SwP Red Sonde/Transmitter for DigiTrak Mark Series
$1,100.00
Contact Us — Free Worldwide Shipping
- ✅ Compatible with DigiTrak Mark 3, 4, and 5
- ✅ Switchable power: standard 21.3 m / enhanced 27 m depth
- ✅ Deepest range in the DigiTrak Mark sonde lineup
- ✅ 1-year warranty with prompt replacement
- ✅ Free shipping worldwide
The DX red SwP sonde is a replacement transmitter with switchable power (SwP), compatible with all DigiTrak Mark 3, Mark 4, and Mark 5 locating systems. Operating at 33 kHz, it offers two selectable depth modes: standard mode at 21.3 meters and enhanced (high-power) mode at 27 meters — making it the deepest-reaching sonde in the DigiTrak Mark lineup. It transmits 12 clock positions with an inclination accuracy of ±0.1%, and automatically switches to standby after 15 minutes of inactivity.
📋 How to Switch Power Modes
- Enhanced mode (27 m): Insert batteries from the bottom, shake vigorously, and wait 5 seconds.
- Standard mode (21.3 m): Insert batteries from the top, shake vigorously, and wait 5 seconds.
The structural components responsible for reliable performance in demanding HDD environments have been reinforced for improved durability and longevity in harsh field conditions.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | DigiTrak Mark 3, 4, 5 |
| Frequency | 33 kHz |
| Operating Depth (Standard) | 50ft / 21.3 m |
| Operating Depth (Enhanced) | 88ft / 27 m |
| Dimensions | 15 x 1.25 / 38.1 × 3.175 cm |
| Weight | 635 g |
| Standby Mode | After 15 minutes |
| Warranty | 1 year |
| Max Temperature | 104°C |
| Inclination Accuracy | ±0.1% |
| Clock Positions | 12 |
| Condition | New, improved |
