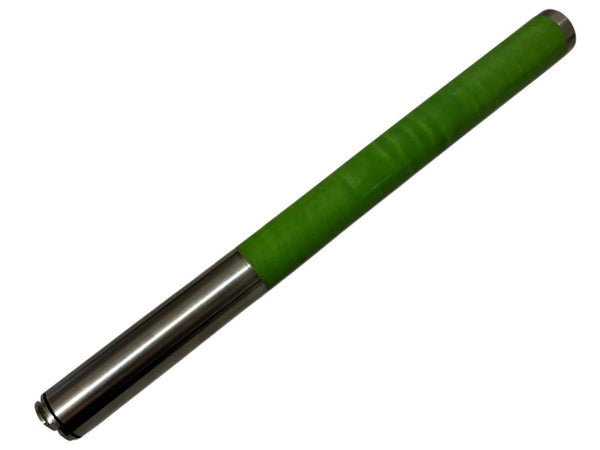

ST SwP Green Sonde/Transmitter for DigiTrak SE
$1,100.00
Contact Us — Free Worldwide Shipping
- ✅Compatible with DigiTrak SE locating system
- ✅12 kHz, switchable power: 15.24 m standard / 19 m high power
- ✅12 clock positions, 1% inclination accuracy
- ✅Standby mode after 15 minutes
- ✅2× longer operating time; reinforced for heavy soils
- ✅1-year warranty. Free shipping worldwide
The ST SwP green sonde for DigiTrak SE has switchable power. It operates at 12 kHz: in standard mode up to 15.24 meters, in high power mode up to 19 meters. The transmitter sends 12 clock positions and inclination with 1% accuracy. It switches to standby mode after 15 minutes.
Switching to ST SwP high power mode
To switch the probe to high power mode:
- Lift the operating probe upside down for 7 seconds,
- Then lower it upside down for 7 seconds,
- And lift it upside down again for 7 seconds.
After that, use the locator to monitor the increase in power (signal level), then perform the standard calibration procedure.
Note: When switching modes, wait up to 15 minutes without batteries — residual voltage can block the sensor and cause it to "freeze."
Operating time increased by 2× — reduced current consumption while maintaining signal strength.
Increased reliability when working in heavy soils or in percussion drilling rigs — the sonde's structural elements responsible for trouble-free operation in harsh conditions have been reinforced.
1-year warranty. Free shipping worldwide.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | DigiTrak SE |
| Frequency | 12 kHz |
| Operating Depth | 50ft/15.24 m (standard) or 62ft/19 m (high power) |
| Dimensions | 15 x 1.25 inch / 38.1 × 3.175 cm |
| Weight | 635 g |
| Standby Mode | After 15 minutes |
| Warranty | 1 year |
| Max Temperature | 104°C |
| Inclination Accuracy | 1% |
| Clock Positions | 12 |
| Condition | New, improved |
