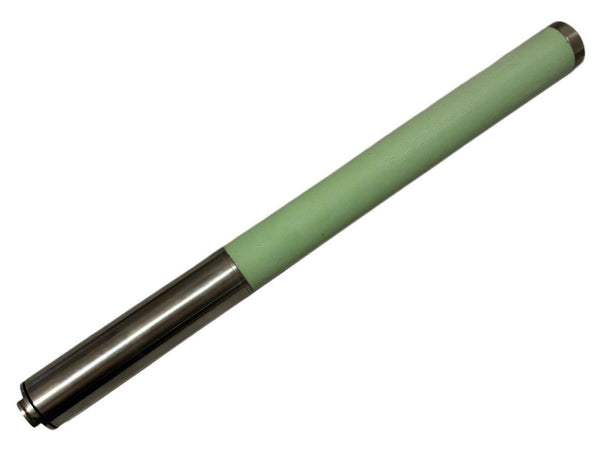

RN-RDDi Dual-Frequency Sonde for Radiodetection
$1,000.00
Contact Us — Free Worldwide Shipping
- ✅ Compatible with Radiodetection RD-385L, DrillTrack and iTrack
- ✅ Switchable frequency: 8 kHz / 33 kHz — two sondes in one body
- ✅ Depth up to 12 m, battery life 55 h (alkaline 4000 mAh)
- ✅ 16 clock positions, inclination accuracy ±1%
- ✅ 1-year warranty. Free shipping worldwide
The RN-RDDi is a dual-frequency replacement transmitter compatible with Radiodetection RD-385L, DrillTrack and iTrack HDD locating systems. It operates at either 8 kHz or 33 kHz — selected by battery installation direction — giving you the flexibility of two sondes in one body.
The sonde transmits 16 clock positions during rotation with inclination accuracy of ±1%. Battery life from a set of alkaline batteries (4000 mAh) is 55 hours at standard depth of up to 12 meters.
How to select frequency:
- — Insert batteries with the head down (battery compartment up) → 8 kHz
- — Insert batteries with the head up (battery compartment down) → 33 kHz
The selected frequency is confirmed 5 seconds after installation. Wait 60 seconds after removing batteries before switching frequency — the sonde continues operating for 40–50 seconds after battery removal.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | Radiodetection RD-385L, DrillTrack, iTrack |
| Frequency | 8 kHz / 33 kHz (switchable) |
| Operating Depth | 12 m |
| Battery Life | 55 h (alkaline 4000 mAh) |
| Clock Positions | 16 |
| Length × Diameter | 38.1 × 3.175 cm |
| Weight | 635 g |
| Inclination Accuracy | ±1% |
| Max Temperature | 104°C |
| Warranty | 1 year |
| Condition | New, improved |
