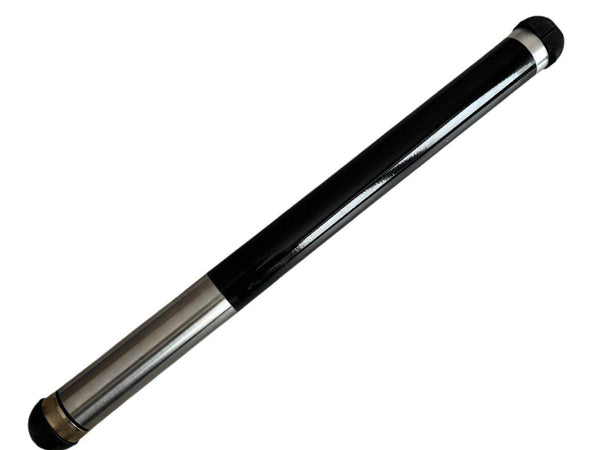

17T4 Probe/Transmitter for Ditch Witch Subsite TKQ, TKD, TK Recon Series

$2,500.00

✅ Compatible with Ditch Witch TK, TKQ and TK Recon locating systems
✅ Switchable frequency: 1.5kHz/12kHz/20kHz/29kHz — four sondes in one body
✅ Working depth: up to 114ft / 35m
✅ 24 clock positions, inclination accuracy ±0.1%
✅ 1-year warranty. Free shipping worldwide

Power Switching Instructions

Operating mode selection — a power/frequency combination (3 power levels and 4 frequencies = 12 combinations) — is performed from the locator via a Bluetooth channel. After the required sonde mode is set, it can be switched in two ways:

Method 1. In-ground switching

The sonde has a 5-hour parking mode. In parking mode, it enters sleep within 5 minutes. To switch the sonde mode, put it into sleep and wake it within one minute (rotate the sonde).

Method 2. Switching on startup

Standard procedure, same as in FX12/19.

Specifications

Parameter	Value
Compatibility	Ditch Witch TK, TKQ, TK Recon
Frequency	1.5 / 12 / 20 /29 kHz (switchable)
Operating Depth (standard)	80ft / 25m
Operating Depth (high power)	114ft / 35m
Clock Positions	24
Length × Diameter	17.8 x 1.5in / 45.2 × 3.8 cm
Weight	1,247 g
Inclination Accuracy	±0.1%
Max Temperature	85°C
Warranty	1 year
Condition	New, improved
