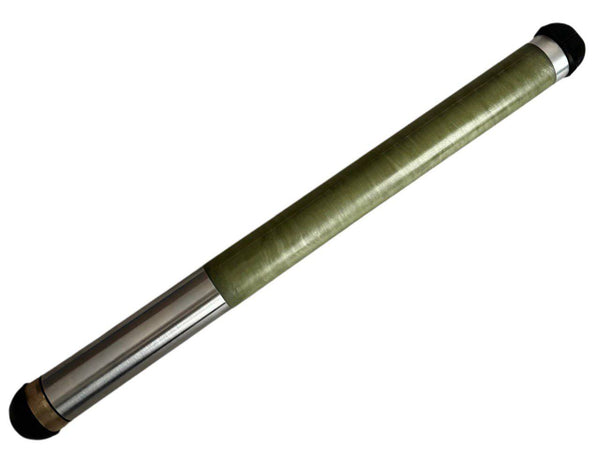

BGH86-D 12&29kHz Probe/Transmitter for Ditch Witch Subsite 750/752 Tracker
$1,200.00
Contact Us — Free Worldwide Shipping
- ✅ Compatible with Ditch Witch SubSite 750 and 752
- ✅ Switchable frequency: 12 kHz / 29 kHz — flexibility of two sondes in one body
- ✅ Depth up to 22 m, inclination accuracy ±0.1%
- ✅ Battery life: 150 h (lithium) / 70 h (alkaline)
- ✅ 1-year warranty. Free shipping worldwide
The SS-86D is a dual-frequency replacement transmitter compatible with all Ditch Witch SubSite 750 and SubSite 752 locating systems. It operates at either 12 kHz or 29 kHz — switchable by the battery installation direction — giving you the flexibility of two sondes in one body.
Use 12 kHz for better penetration in difficult soils and deeper bores. Switch to 29 kHz for standard SubSite 750/752 operation with maximum accuracy. Both modes deliver a working depth of up to 22 meters and inclination accuracy of ±0.1%.
How to select frequency:
- — Insert batteries from the top → 12 kHz
- — Insert batteries from the bottom → 29 kHz
The selected frequency is set after 5 seconds. Wait 60 seconds after removing batteries before changing frequency — the sonde continues operating for 40–50 seconds after battery removal.
Specifications
| Parameter | Value |
|---|---|
| Compatibility | Ditch Witch SubSite 750, SubSite 752 |
| Frequency | 12 kHz / 29 kHz (switchable) |
| Operating Depth | 22 m |
| Length × Diameter | 45.2 × 3.85 cm |
| Weight | 1,247 g |
| Battery Life (lithium) | 150 h |
| Battery Life (alkaline) | 70 h |
| Inclination Accuracy | ±0.1% |
| Max Temperature | 80°C |
| Warranty | 1 year |
| Condition | New, improved |
