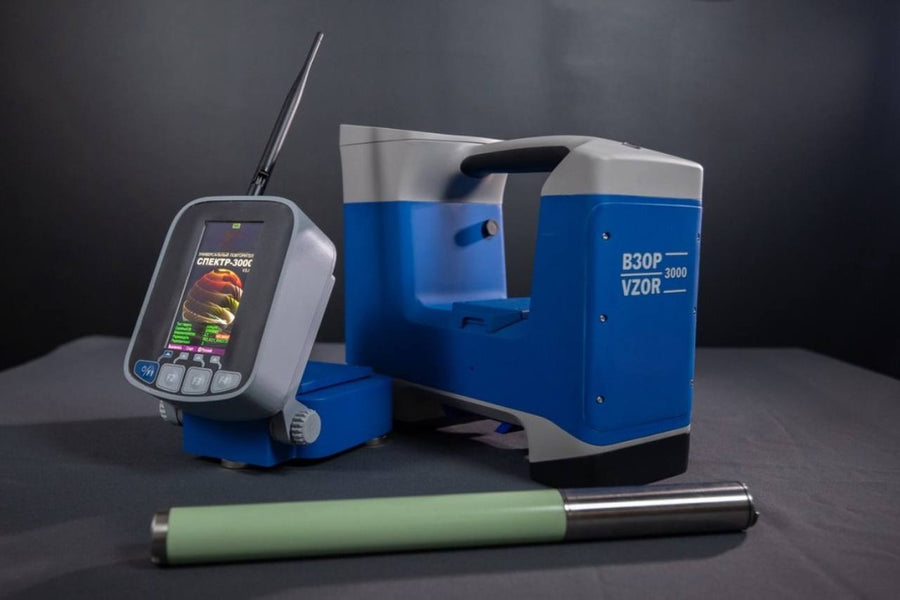

VZOR-3000 Dual-Frequency Locator
$10,000.00
- ✅ Dual-frequency: 12 / 29 kHz
- ✅ Depth up to 30 m (50 m with optional high-power sonde)
- ✅ Inclination accuracy ±0.1°, 24 clock positions
- ✅ Locator–repeater range up to 700 m
- ✅ Upgradeable to the 5-frequency version
- ✅ Kit included: locator, repeater, sonde, batteries, charger, case
VZOR-3000 is a locating system for everyday HDD work and complex projects. The lineup includes two versions: dual-frequency and five-frequency. This allows you to choose a solution that fits your working conditions and the level of functionality you need.
If you need reliable basic locating for standard drilling operations, the dual-frequency version is the right choice. For more flexible configuration and confident performance in difficult conditions, there is also a five-frequency version available.
Core Features
- — "Drill-to-target" mode
- — Two-point depth control method
- — Sonde rotation correction to 12 o'clock
- — Working frequency search by interference level
- — Locating accuracy adjustment
- — Locator height-above-ground adjustment
Specifications — 2-Frequency Version
| Parameter | Value |
|---|---|
| Frequencies | 12 / 29 kHz |
| Operating Depth (standard) | Up to 20 m (standard power), up to 30 m (high power) |
| Operating Depth (optional high-power sonde) | Up to 30 m (standard) / up to 50 m (high power) |
| Clock Positions | 24 |
| Inclination Accuracy | ±0.1° |
| Locator–Repeater Range | Up to 700 m |
| Upgradeable to 5-frequency | Yes — full upgrade program available |
What's Included in the Kit
- 1 Locator
- 2 Repeater
- 3 Sonde in the form factor of your choice
- 4 3 batteries for the locator and repeater
- 5 Charger
- 6 Transport case
We Supply a Sonde Matched to Your Drill Head
By default, VZOR-3000 comes with a standard-size sonde compatible with DigiTrak. We can also manufacture a standard or long sonde for DigiTrak, a sonde for Ditch Witch, or a compact-size sonde. We will help you select the right option when placing your order.
Option: VZOR NOTE App
An additional option — project logging via the VZOR NOTE mobile app. Documents your bore path, depth readings and job parameters automatically.
+ $1,500 USD
How to Order
To configure VZOR-3000 for your specific tasks, contact us via WhatsApp (chat or call):
WhatsApp +1 928 889 1298Frequently Asked Questions
How do I upgrade a dual-frequency locator to five-frequency?
We offer an upgrade program from the dual-frequency to the five-frequency version. You will need to send in the complete locating kit. Contact us for details and pricing.
Do you provide training on how to use the locating system?
The kit includes a clear user manual. We also publish short videos with use cases and feature explanations. If questions arise during operation, we are always available — and if necessary provide remote assistance right on the job site.
Which sonde form factor is compatible with my drill head?
We manufacture sondes in DigiTrak standard, DigiTrak long, Ditch Witch, and compact form factors. Just let us know your drill rig model when placing the order and we will prepare the correct sonde.
