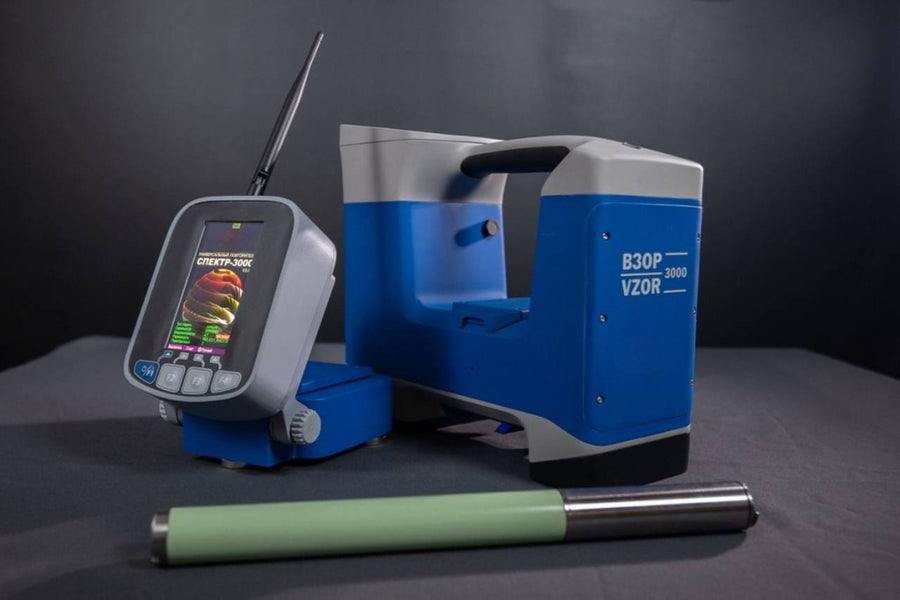

VZOR-3000 Five-Frequency Locator
$13,000.00
- ✅ Five frequencies: 1.5 / 12 / 24 / 29 / 37 kHz
- ✅ 3 power levels — depth up to 50 m
- ✅ Bluetooth sonde configuration
- ✅ Rock drilling mode, Up/Down profiles
- ✅ Inclination accuracy ±0.1°, 24 clock positions
- ✅ Kit included: locator, repeater, sonde, batteries, charger, case
The VZOR-3000 locating system is built for both routine HDD jobs and technically demanding projects. Two configurations are available — dual-frequency and five-frequency — so you can match the system to your actual site conditions and workflow requirements.
When the job calls for tighter control, multiple operating modes, or reliable signal in challenging ground, the five-frequency model gives you that flexibility. Five selectable frequencies, three power levels and Bluetooth sonde configuration cover the full range of modern HDD conditions.
Core Features
- — "Drill-to-target" mode
- — Two-point depth control method
- — Sonde rotation correction to 12 o'clock
- — Working frequency search by interference level
- — Locating accuracy adjustment
- — Locator height-above-ground adjustment
5-Frequency Exclusive Features
- ★ Bluetooth-based sonde parameter configuration
- ★ "Up / Down" modes with separate setting profiles
- ★ Rock drilling mode
- ★ Sleeping / non-sleeping mode
- ★ Power source selection
- ★ Sonde current consumption monitoring
Specifications — 5-Frequency Version
| Parameter | Value |
|---|---|
| Frequencies | 1.5 / 12 / 24 / 29 / 37 kHz |
| Power Levels | 3 levels |
| Operating Depth | Up to 50 m |
| Clock Positions | 24 |
| Inclination Accuracy | ±0.1° |
| Locator–Repeater Range | Up to 700 m |
| Sonde Configuration | Bluetooth wireless |
| Drilling Modes | Standard, Rock, Up / Down |
| Sleep Mode | Sleeping / non-sleeping (selectable) |
| Power Source | Selectable |
| Current Consumption Monitoring | Yes |
| Upgradeable from 2-frequency | Yes — full upgrade program available |
What's Included in the Kit
- 1 Locator
- 2 Repeater
- 3 Sonde in the form factor of your choice
- 4 3 batteries for the locator and repeater
- 5 Charger
- 6 Transport case
We Supply a Sonde Matched to Your Drill Head
By default, VZOR-3000 comes with a standard-size sonde compatible with DigiTrak. We can also manufacture a standard or long sonde for DigiTrak, a sonde for Ditch Witch, or a compact-size sonde. We will help you select the right option when placing your order.
Option: VZOR NOTE App
An additional option — project logging via the VZOR NOTE mobile app. Documents your bore path, depth readings and job parameters automatically.
+ $1,500 USD
How to Order
To configure VZOR-3000 for your specific tasks, contact us via WhatsApp (chat or call):
WhatsApp +1 928 889 1298Frequently Asked Questions
How do I upgrade a dual-frequency locator to five-frequency?
We offer an upgrade program from the dual-frequency to the five-frequency version. You will need to send in the complete locating kit. Contact us for details and pricing.
Do you provide training on how to use the locating system?
The kit includes a clear user manual. We also publish short videos with use cases and feature explanations. If questions arise during operation, we are always available — and if necessary provide remote assistance right on the job site.
Which sonde form factor is compatible with my drill head?
We manufacture sondes in DigiTrak standard, DigiTrak long, Ditch Witch, and compact form factors. Just let us know your drill rig model when placing the order and we will prepare the correct sonde.
What is the difference between the 2-frequency and 5-frequency versions?
The 5-frequency version adds three additional frequencies (1.5 / 24 / 37 kHz), a third power level for 50 m depth, Bluetooth sonde setup, rock drilling mode, Up/Down profiles, and current consumption monitoring. The 2-frequency version covers standard everyday tasks; the 5-frequency version is the right choice for complex conditions and maximum flexibility.
